Explore Dual-Nozzle Capabilities

Multi-material Printing

Flexible and rigid, low cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

Dedicated Support Material

Perfect supports with minimal waste, purging and reloading

Print with support is no longer a headache. With H2D’s dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

Efficient Multi-color Printing

Fast and efficient multi-color printing

Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

All-in-one Solution For Personal Manufacturing

Laser

10W and 40W 455nm Laser for engraving & cutting

Digital Cutting

Precise cutting on variety of materials

Pen Drawing

Drawing and writing

Live Spatial Alignment

What-You-See-Is-What-You-Get

The H2D’s BirdsEye camera, combined with computer vision algorhtims, delivers top-view alignment accuracy up to 0.3mm. This advanced spatial alignment allows users to place the tool path at the right position on the material – truly "what-you-see-is-what-you-get."*

Auto Arrangement

Maximize material efficiency, minimize waste

Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, i.e left over plywood from the previous project. This feature helps you to get the most out of every material.

Don’t Worry About Safety – Bambu Lab Got You Covered

Laser Safety Windows

Operate and monitor laser projects safely without the need for goggles, thanks to our safety windows.

Air Purifier

An optional air purifier ensures clean air, even during indoor laser operations.*

Don’t Worry About the Settings – Bambu Lab Got It Covered

Full-auto Calibration

A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments.

Material CodeSync

The H2D automatically scans the QR code on your material to load the perfect preset.*

A Serious Laser Machine

Air Assist

Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.

Contact-less 3D Mesh*

Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.

Go Big, Go Fast, Go Precise

Bambu Lab Secret Weapon:Vision Encoder

50µm ultra-fine motion accuracy*

An ultra-accurate vision encoder plate, combined with 5µm resolution optical measurements to track and correct toolhead motion, enables the H2D to achieve consistent and reliable distance-independent 50μm motion accuracy across the entire workspace, one order of magnitude better than its predecessor. (*Vision Encoder sold separately)

King-size Work Zone

Break free from size constraints

With a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.

350°C Hotend & 65°C Chamber Heating

Unleash the full potential of high-performance materials

Equipped with 65°C active chamber heating and a high-temperature hotend reaching up to 350°C, the H2D delivers precise closed-loop temperature control. This advanced system effectively eliminates warping and deformation in high-performance materials, ensuring superior layer bonding and maximizing their full potential.

REAL High-Flow Hotend*

Consistently print at 600mm/s with ease

The H2D’s purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s. Designed for consistent performance, it eliminates mid-print flow rate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.*

DynaSense Extruder

Intelligent sensing for precise extrusion control

Bambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.

A Smarter, Safer Experience

Nozzle Camera

Monitor extrusion at the nozzle tip

The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

Pre-Flight Checklist by AI

Peace of mind, every time you print

Prior to each operational cycle, H2D's vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan – Detects debris across the entire print surface. Hardware Configuration Audit – Instantly identifies nozzle dimensions and build plate properties. Digital-Physical Alignment – Automatically verifies consistency between detected hardware specifications and active slicer parameters.

Specs

Item		Specification
Printing Technology		Fused Deposition Modeling
Body	Build Volume (WDH)	Single Nozzle Printing: 325320325 mm³ Dual Nozzle Printing: 300320325 mm³ Total Volume for Two Nozzles: 350320325 mm³
	Chassis & Shell	Aluminum, Steel, Plastic and Glass
	Laser Safety Windows	Equipped on Laser Edition
	Air Assist Pump	Equipped on Laser Edition
Physical Dimensions	Physical Dimensions	492514626 mm³
Physical Dimensions	Net Weight	31 kg (Gross weight: H2D Laser Full Combo: 46.2 kg)
Toolhead	Hotend	All Metal
	Extruder Gear	Hardened Steel
	Nozzle	Hardened Steel
	Max Nozzle Temperature	350 °C
	Included Nozzle Diameter	0.4 mm
	Supported Nozzle Diameter	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
	Filament Diameter	1.75 mm
	Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed	Supported Build Plate Type	Textured PEI plate, Smooth PEI Plate
Heatbed	Max Heatbed Temperature	120 ℃
Speed	Max Speed of Toolhead	1000 mm/s
	Max Acceleration of Toolhead	20,000 mm/s²
	Max Flow for Hotend (Standard Flow Hotend)	40 mm³/s(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
	Max Flow for Hotend (Optional High Flow Hotend)	65 mm³/s(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperatur Control	Active Chamber Heating	Supported
Chamber Temperatur Control	Max Temperature	65 °C
Air Purification	Pre-filter Grade	G3
	HEPA Filter Grade	H12
	Activated Carbon Filter Type	Granulated Coconut Shell
Cooling	Part Cooling Fan	Closed Loop Control
	Auxiliary Part Cooling Fan	Closed Loop Control
	Chamber Heat Circulation Fan	Closed Loop Control
	Cooling Fan for Hotend	Closed Loop Control
	Main Control Board Fan	Closed Loop Control
	Chamber Exhaust Fan	Closed Loop Control
Supported Filament Type	PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA CF/GF, PPS, PPS CF/GF	Supported
Sensor	Live View Camera	Built-in; 1920*1080
	Nozzle Camera	Built-in; 1920*1080
	BirdsEye Camera	Built-in; 3264*2448（Equipped with Laser Edition）
	Toolhead Camera	Built-in; 1920*1080
	Door Sensor	Supported
	Filament Run Out Sensor	Supported
	Filament Tangle Sensor	Supported
	Filament Odometry	Supported with AMS
	Power Loss Recovery	Supported
Electrical Requirements	Voltage	100-120 VAC / 200-240 VAC, 50/60 Hz
	Max Power*	2200 W@220 V / 1320 W@110 V
	Please purchase the version corresponding to your region's voltage.
Working Temperature	10 °C-30 °C
Electronics	Touchscreen	5-inch 720*1280 Touchscreen
	Storage	Built-in 8 GB EMMC and USB Port
	Control Interface	Touchscreen, mobile App, PC App
	Neural Processing Unit	2 TOPS
Software	Slicer & Software	Bambu Studio, Bambu Suite, Bambu Handy Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Software	Supported Operating System	MacOS, Windows
Wi-Fi	Operating Frequency	2412-2472 MHz, 5150-5850 MHz (FCC/CE) 2400-2483.5 MHz, 5150-5850 MHz (SRRC)
	Wi-Fi Transmitter Power (EIRP)	2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
	Wi-Fi Protocol	IEEE 802.11 a/b/g/n
10W & 40W Laser Module	Laser Type	Semiconductor Laser
	Laser Wavelength	Engraving Laser: 455 nm ± 5 nm Blue Light Height Measuring Laser: 850 nm ± 5 nm Infrared Light
	Laser Power	10 W ± 1 W; 40 W ± 2 W
	Laser Spot Dimension	10W: 0.03 mm * 0.14 mm; 40W: 0.14 mm * 0.2 mm
	Working Temperature	0 °C–35 °C
	Max Engraving Speed	10W: 400 mm/s; 40W: 1000 mm/s
	Max Cutting Thickness	10W: 5 mm; 40W: 15mm (Basswood Plywood)
	Laser Safety Class for Laser Module	Class 4
	Overall Laser Safety Class*	Class 1
	Engraving Area	10W: 310 mm * 270 mm; 40W: 310 mm * 250 mm
	XY Positioning Accuracy	< 0.3 mm
	Z Height Measuring Method	Micro Lidar
	Z Height Measuring Accuracy	± 0.1 mm
	Flame Detection	Supported
	Temperature Detection	Supported
	Door Sensor	Supported
	Laser Module Installation Detection	Supported
	Safety Key	Included
	Ventilation Pipe Adapter Outer Diameter	100 mm
	Supported Material Type	Wood, rubber, metal sheet, lether, dark acrylic, stone, and more
Cutting Module	Cutting Area	300*285 mm²
	Drawing Area	300*255 mm²
	Supported Pen Diameter	10.5 mm-12.5 mm
	Cutting Mat Type	LightGrip and StrongGrip Cutting Mats
	Blade Type	45°*0.35 mm
	Blade Pressure Range	50 gf-600 gf
	Max Cutting Thickness	0.5 mm
	Blade and Pen Recognition	Supported
	Cutting Mat Type Detection	Supported
	Supported Image Type	Bitmap and Vector Images
	Supported Material Type	Paper, vinyl, leather, and more

What's In The Box

Bambu Lab H2D Laser Edition
Textured PEI Build Plate
Spool Holder
Accessory Box
AMS 2 Pro
10W Laser Module	Depending on selected combo
40W Laser Module	Depending on selected combo
Cutting Module (with Pen Holder)
Laser Platform
Cutting Platform
Safety Key
Ventilation Pipe
Laser & Cutting Materials
Emergency Stop Button

Products

Bambu Lab Cutting Platform

Bambu Lab H2D Laser Full Combo

Bambu Lab Laser Base

Bambu Lab Laser Protective Goggles

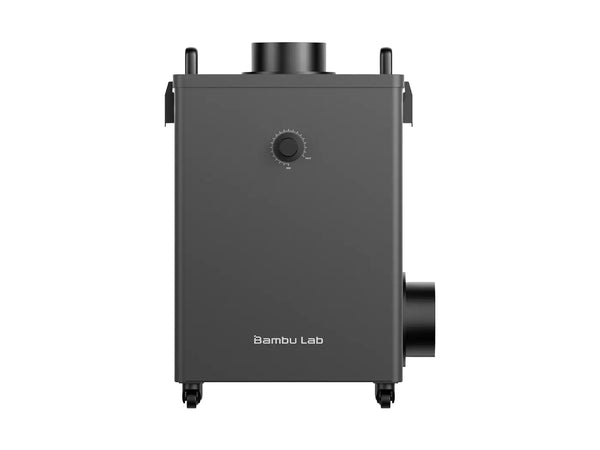

Bambu Lab Smoke Purifier

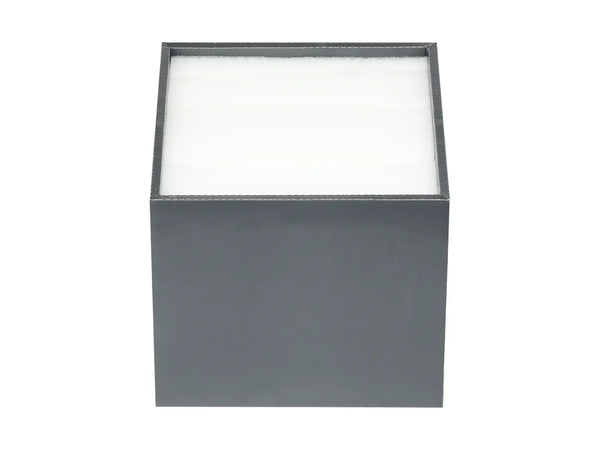

Bambu Lab Smoke Purifier Air Filter Combo
